ELCERAM ESC NITRIDE 1/10 G1

Úvod ELCERAM RCELCERAM ESC NITRIDE 1/10 G1

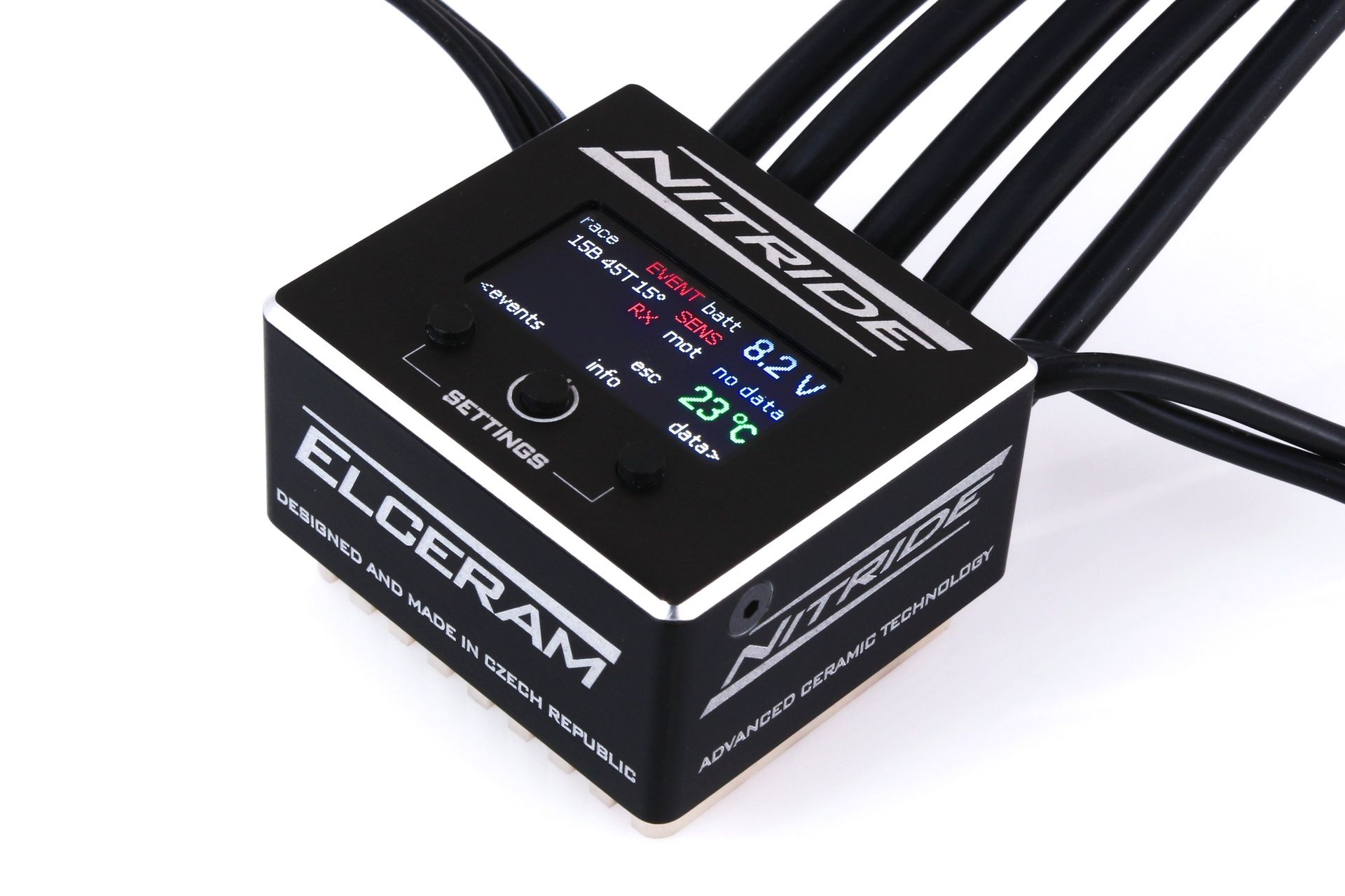

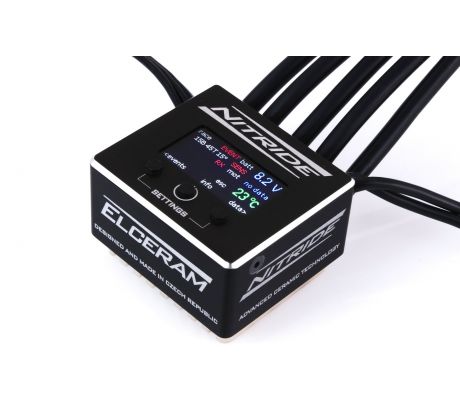

ELCERAM ESC NITRIDE 1/10 G1

ELC001

Výrobca: Elceram
Kód: ELC001

Dostupnosť: skladom
222,50 € bez DPH 267,- € s DPH
Do košíka

ELCERAM ESC NITRIDE 1/10 G1

Regulátor pro BLDC motory vyvinutý speciálně pro RC auta 1/10.



NITRIDE je prvním regulátorem s TFT LCD barevným displejem na trhu. Tato výhoda umožňuje revolučně jednoduché nastavení a programování všech parametrů přímo na regulátoru, s pomocí displeje a 3 tlačítek. Žádná programovací karta ani mobilní aplikace není třeba. Vše, co potřebujete, je uvnitř.



Díky pokročilé technologii chlazení – Advanced Cooling Technology – založené na speciální Aluminium Nitride keramice, se NITRIDE vyznačuje vynikající tepelnou vodivostí.



Tyto jedinečné vlastnosti poskytují NITRIDE revoluční funkce:
- Průběžné monitorování napětí baterie nebo teploty regulátoru a motoru přímo na displeji regulátoru v reálném čase.
- Snadná kontrola důležitých parametrů před závodem: teplotu motoru, kabel snímače nebo napětí baterie lze kdykoli rychle zkontrolovat jedním pohledem na displej regulátoru.
- Přehledné vyhodnocení dat po závodě včetně záznamu a grafického znázornění, křivek a histogramů přímo na displeji.
- Snadné a rychlé programování: plyn, brzda, časování, Hallův úhel, Top Speed a mnoho dalších funkcí.
- Není třeba připojovat žádné další programovací rozhraní, vše je ovládáno a zobrazováno přímo na displeji regulátoru.



Klíčové vlastnosti:
- TFT LCD barevný displej s rozlišením 160 x 80 pixelů.
- Rozměry: 38,3 (L) x 34,3 (W) x 24,5 (H) mm.
- Hmotnost: 50 g bez kabelů / 90 g s kabely AWG13 - 180 mm.
- 70 % hmotnosti je lokalizováno ve spodní části regulátoru.
- Zdroj napájení: 2S LiPo.
- Proud: cont. / pulsed: 180 A / 1500 A.
- BEC: 7,4 V fixed, 4 A cont. / 10 A peak at 125 °C.
- Extrémně nízký vnitřní odpor díky stříbrné vodivé vrstvě.
- Pokročilá technologie chlazení – Advanced Cooling Technology – založená na keramickém chladiči z Aluminium Nitride keramiky.
- Vyvinuto pro závodění na vysoké úrovni.
- Zero Timing (Blinky Mode) neboli Stock režim rovněž podporován.
- Pro BLDC motory se snímačem od 4,5T výše.
- Navrženo, vyvinuto a vyrobeno v České republice.



Více informací: www.elceram-rc.com



Electronic speed controller for BLDC motors designed especially for 1/10 RC cars.



NITRIDE is the first ESC with TFT LCD color display ever. This advantage enables easy setting and programming of all parameters directly at ESC, using just display and 3 buttons, without need of any other interface. All you need is inside of your ESC.



Thanks to Advanced Cooling Technology based on Aluminium Nitride Ceramic, NITRIDE is characterized by excellent thermal conductivity.



These properties provide NITRIDE revolutionary features:
- Real-time monitoring such as battery voltage or ESC and Motor temperatures directly at the display of ESC.
- Easy check before the race: motor temperature, sensor cable or battery voltage can be quickly checked by one look at the display of ESC.
- Post-race data evaluation, no other interface needed.
- Easy programming: throttle, brake, timing, hall angle, top speed and many other functions.
- Race data logging, temperature and other curves, histograms and more.



Key Characteristics:
- TFT LCD color display with resolution 160 x 80 pixels.
- Size: 38,3 (L) x 34,3 (W) x 24,5 (H) mm.
- Weight: 50 g without wires / 90 g with wires AWG13 - 180 mm.
- 70 % of weight located in bottom side of ESC
- Power supply: 2S LiPo.
- Current cont. / pulsed: 180 A / 1500 A.
- BEC: 7,4 V fixed, 4 A cont. / 10 A peak at 125 °C.
- Extreme low internal resistance based on silver conductive layer.
- Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
- Designed for high level RC racing.
- Zero Timing (Blinky Mode) supported.
- For sensored BLDC motors from 4.5T up.
- Designed and produced in Czech Republic



More information: www.elceram-rc.com



The new Elceram Nitride 1/10 is designed and manufactured entirely in Europe, Elceram's Nitride is set to become the new benchmark for those who demand the best, thanks to its high quality and innovative features such as the display where all data can be monitored. Made with ceramic components, it ensures the best heat dissipation on the market compared to competitors. Its compact design has 70% of its weight distributed in the lower part, enhancing stability and performance.

NITRIDE 1/10 is a new generation electronic speed controller for BLDC motors. Using Advanced Cooling Technology based on Aluminium Nitride Ceramic cooler, NITRIDE is characterized by excellent thermal conductivity and at the same time it is the first ESC with TFT LCD color display ever. These properties provide NITRIDE revolutionary features.

Features:

  • Developed especially for 1/10th professional RC cars.
  • TFT LCD color display with resolution 160 x 80 pixels.
  • Size: 38,3 (L) x 34,3 (W) x 24,5 (H) mm.
  • Weight: 50 g without wires / 90 g with wires AWG13 - 180 mm.
  • 70 % of weight located in bottom side of ESC.
  • Power supply: 2S LiPo.
  • Current cont. / pulsed: 180 A / 1500 A.
  • BEC: 7,4 V fixed, 4 A cont. / 10 A peak at 125 °C.
  • Extreme low internal resistance based on silver conductive layer.
  • Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
  • Designed for high level RC racing.
  • Zero Timing (Blinky Mode) supported.
  • For sensored BLDC motors from 4.5T up.
  • Designed and produced in Czech Republic.

Functions:

  • Revolutionary easy Rx calibration.
  • Realtime monitoring: battery voltage, ESC and motor temperatures.
  • Self-diagnostic before the race: motor temperature, sensor cable, battery.
  • Post-race data evaluation.
  • Easy programming: throttle, brake, boost and turbo timing, hall angle and many other functions.
  • Race data logging, temperature and other curves, histograms and more.
  • Adjustable maintenance reminder for easy check.
  • No programming interface needed.

LCD Display:

NITRIDE comes with a breakthrough in RC motor controlling - LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisel

Easy Check and Set:

Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It´s really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

Dimensions:

Although it brings so many new great functions, NITRIDE 1/10 is really compact sized. Its dimensions are suitable for all types of 1/10 RC cars.

In addition to that, 70% of weight is located at the bottom of ESC for even better stability of your car!

Advanced Cooling Technology:

Advanced cooling technology based on Aluminium Nitride cooler, developed especially for NITRIDE, provides the ESC the excellent thermal conductivity higher than 160 W/mK and long-term resistance to high temperatures and loads.

MOSFETs transistors are cooled directly without any additional thermal resistance layer!

During the production, we used very thick layers of special materials like silver and copper for very low internal resistance and the newest technologies inspired by our production of power systems.

Easy installation:

Installation of NITRIDE is quick and easy - using two screws, small plate and double-sided tape.

In addition, the cover of ESC with display and buttons is able to be changed simply in case of any accident.
